Beam Clamp Pipe Rack Rollers

Heavy duty beam clamp rigging rollers

The pipe rack rollers are used for a variety of industries and applications,typically for installation of pipes into racks at refineries,Power stations and industrial plants.

All the pipe rack rollers are designed to be light weight,with I beam clamps for quick installation and warious roller head options so that all sizes and weights of pipe can be easily,safely and efficiently installed.

Product Details of Beam Clamp Pipe Rack Rollers

Features and Advantages

Six configurations from 1-10 tons capacity
Three size for 2-60″ pipe diameters
Urethane wheels with sealed bearings
Easy to replace wheels,bolt off and on in seconds
Comes ready to use on stainless steel
Convenient and safe carry handles on all models
Safety leash included with all moldes

Specs of Beam Clamp Pipe Rack Rollers

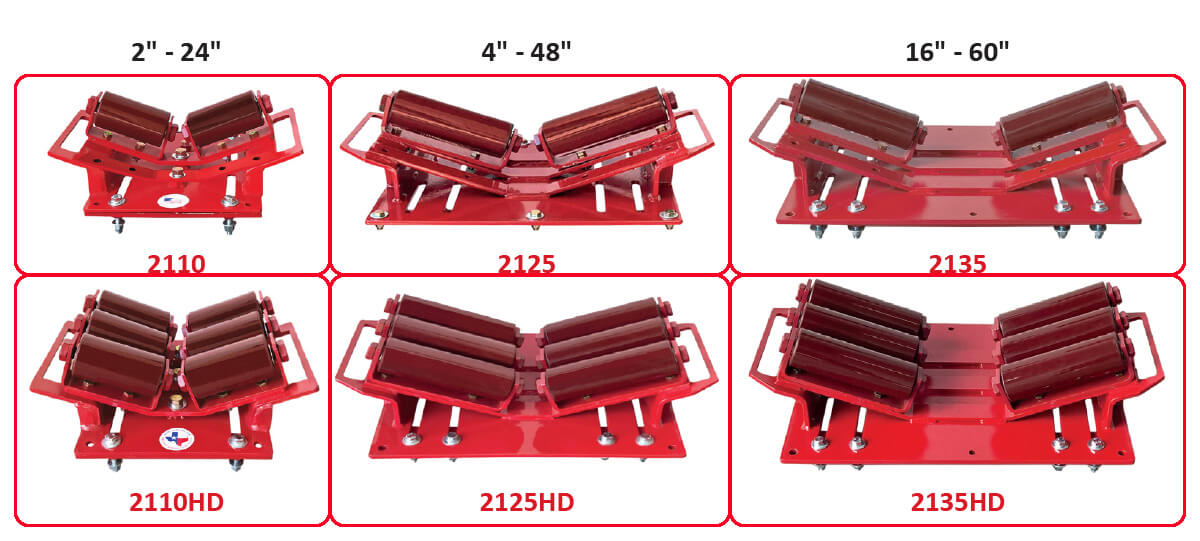

Pipe rack rollers

PART No.	2110	2110HD	2125	2125HD	2135	2135HD
Load capacity	1 ton 1016 kg 2240 lbs	3 tons 3048kg 6720 lbs	5 tons 5080 kg 11200 lbs	10 tons 10160 kg 22400 lbs	5 tons 5080 kg 11200 lbs	10 tons 10160 kg 22400 lbs
Weight	27 kg/59 lbs	43 kg/95 lbs	59 kg/130 lbs	82 kg/180 lbs	66 kg/145 lbs	91 kg/200 lbs
Pipe Diameter Range	2-24″ 60.3-610mm		4-48″ 114.3-1220mm		16-60″ 400-1530mm
Footprint	16.5″ x 20.5″ x 8″ 41.9 x 52 x 20.3 cm		19″ x 30″ x 8.75″ 48.3 x 76.2 x 22.2 cm		21″ x 34″ x 8.75″ 53.3 x 86.4 x 22.2 cm
Beam flange width range	6″ – 12″ 150 x 300 mm
