Product Details of Duo Pipe Stands

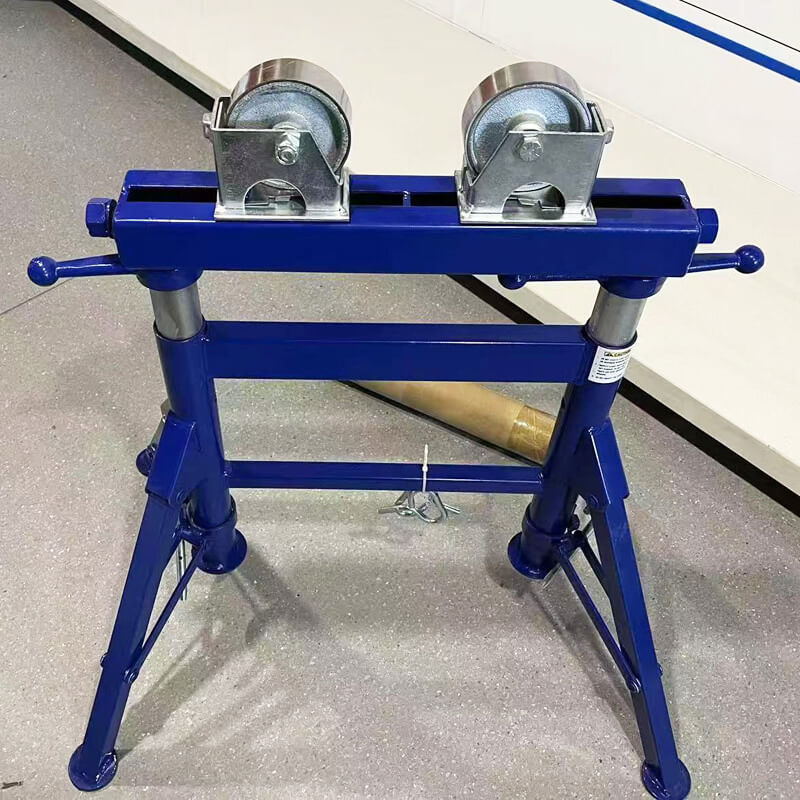

Four Leg Adjustable Pipe Roller
Features and Advantages
- Load capacity 2400kg/5290lbs
- Folding legs for ease of transport and storage
- Self cenering head adjustment from either side
- Height adjustable 29-42.5′ (74.5-108CM)
- 2-48″ (51-1219mm) pipe diameter capacity
- Quick height adjustment with additional fine therad for workpiece levelling
- “Trued”wheels eliminate “corkscrewing”of pipe during rotation
- Lockable wheels to hold pipe in position
- Safety pins to lock stand at working height
Specs of Duo Pipe Stands
| Photos | Name | Part No. | Loading capacity | Unit weight |
 |
Base Unit Only | DPS200 | 2400KG/5290 LBS | 19.5KG/43 LBS |
 |
Pair Nylon Wheel Heads | NWH2 | 450KG/5000 LBS | 2.2KG/5 LBS |
 |
Pair Steel Wheel Heads | SWH2 | 2400KG/5290 LBS | 3KG/6 LBS |
| Stainless | SWH2SS | 2400KG/5290 LBS | 3KG/6 LBS | |
 |
Pair Ball Transfer Heads | BTH2 | 1450KG/3197 LBS | 3KG/6 LBS |
| Stainless | BTH2SS | 1450KG/3197 LBS | 3KG/6 LBS |

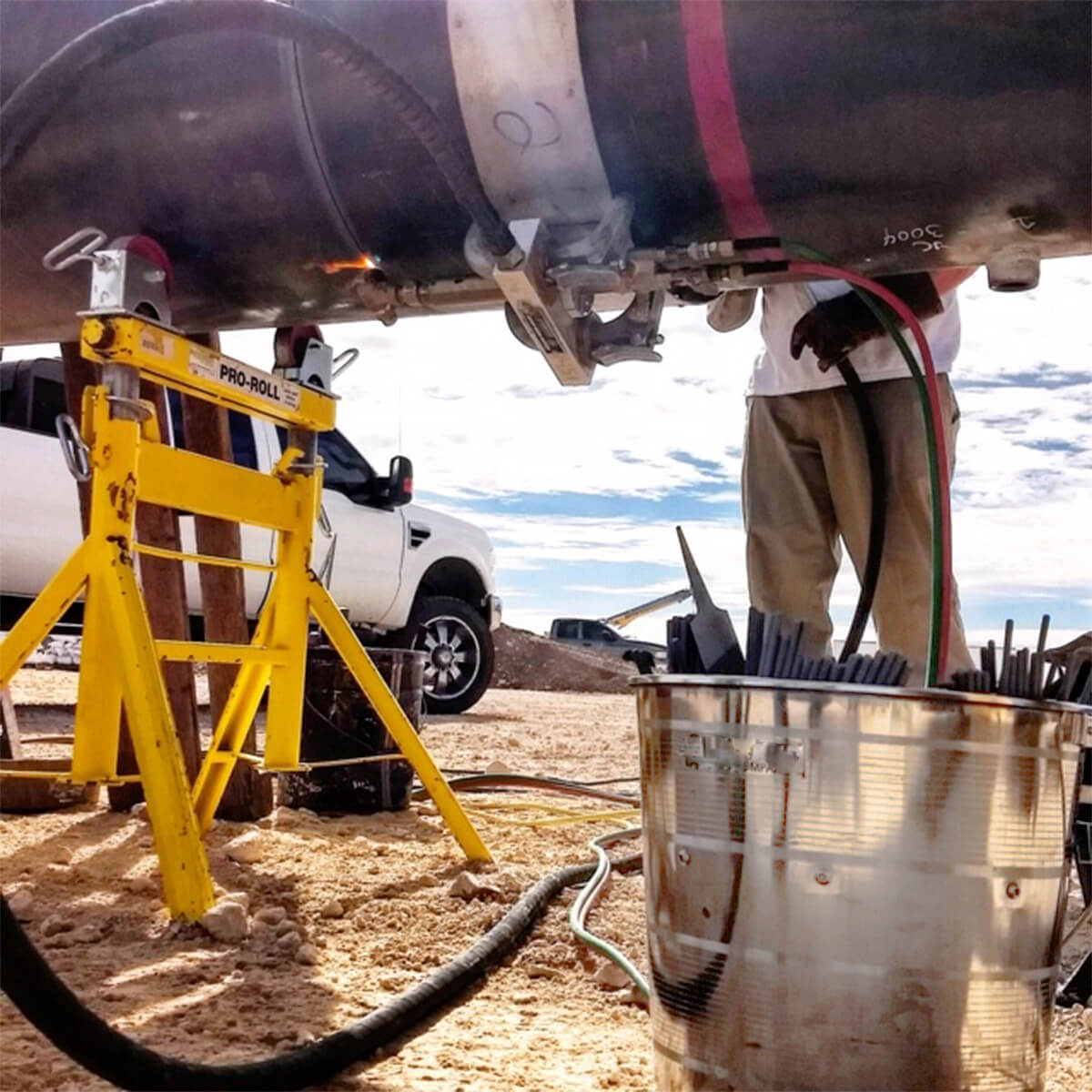

Application
