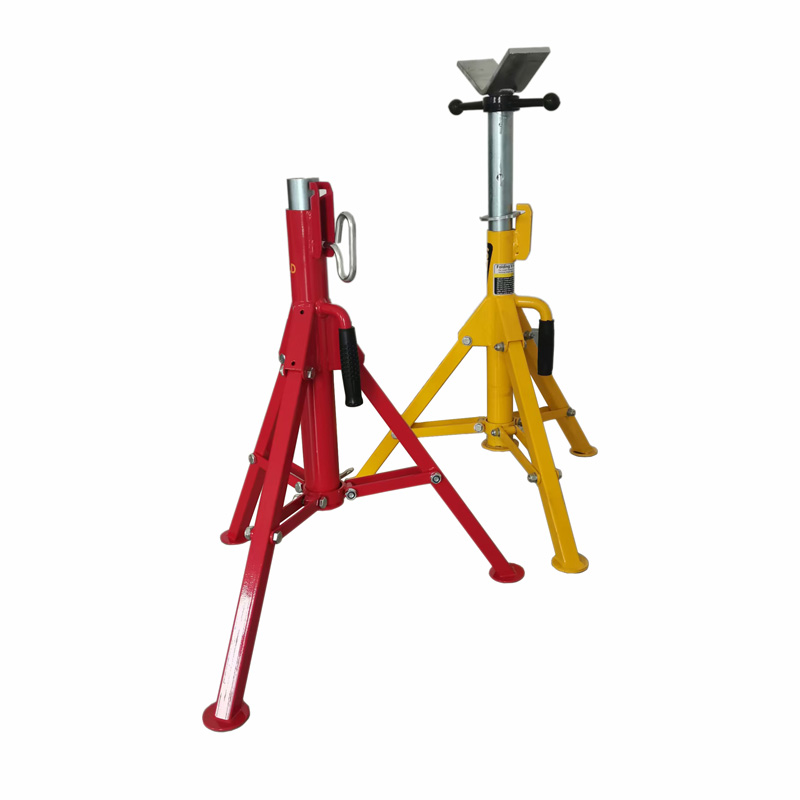

Product Details of Folding Pipe Jack stands

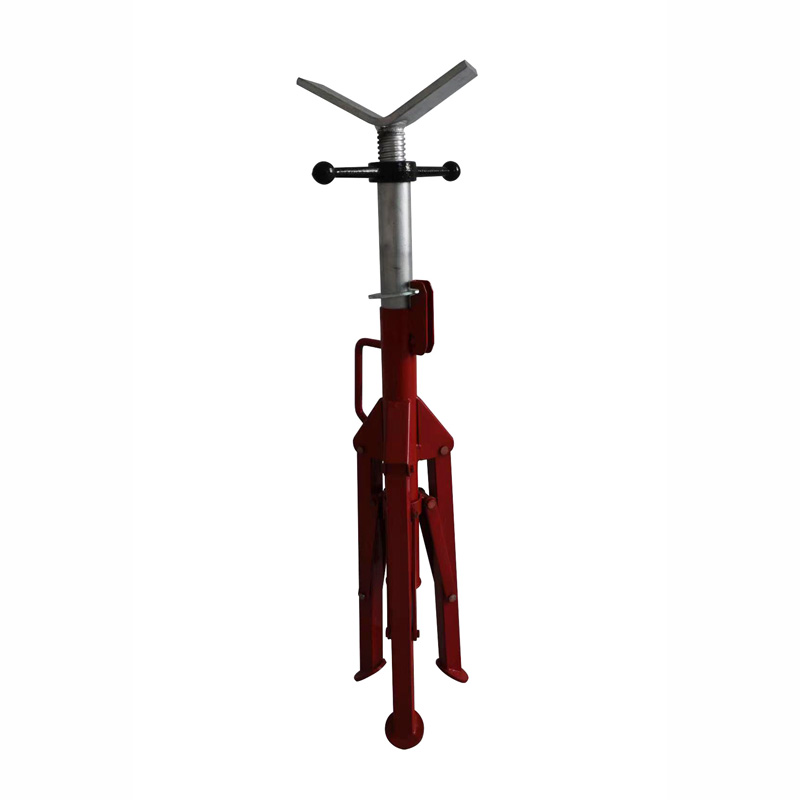

Folding leg
The foldable pipe stands is very convenient for outdoor on-site construction. After folding, the volume is reduced by one third.

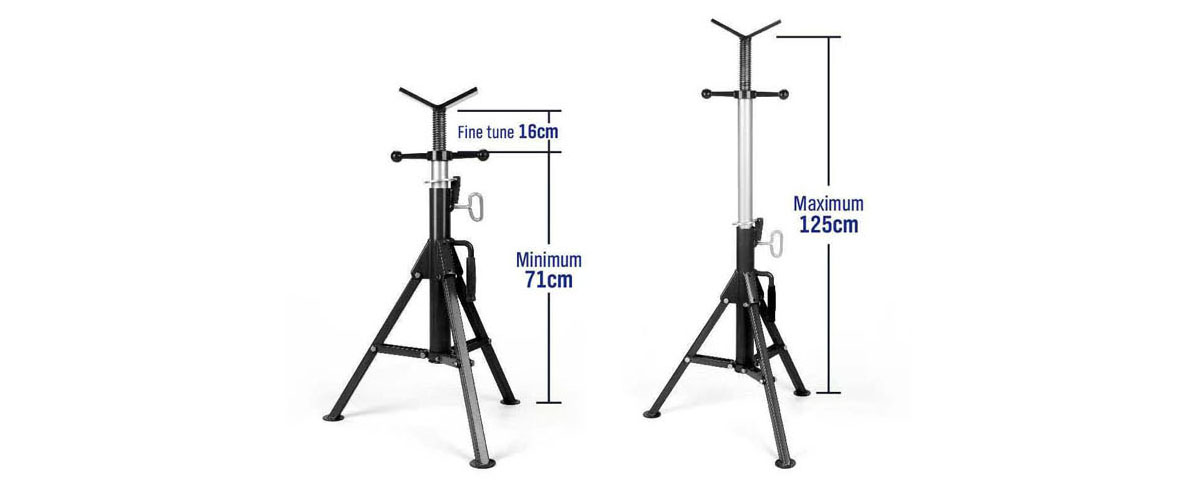

The adjustable height of the foldable pipe stand ranges from 71CM to 125CM, and the height can also be customized.
Features and Advantages
- 1 1/2″ Square box section construction
- 1585kg/3500lbs load capacity
- Folding legs allow for easy storage and transportation
- Comprehensive range of 9 different head styles
- Adjustable in height from 27 1/2″ -48 ” (71-122cm)
- Independently load tested
Specs of Folding Pipe Jack stands
| Photos | Name | Part No. | Loading capacity | Unit weight | Pipe Size |
 |
Tri Fixed Stand (base only) |
TPS3 | 1585KG/3500 LBS | 7.6KG/17 LBS | 1-24″ |
 |
Tri Folding Stand (base only) |
TFS3 | 1585KG/3500 LBS | 7.6KG/17 LBS | 1-24″ |
 |
Tri V Head | TVH3 | 1585KG/3500 LBS | 3.4KG/7 LBS | 1-12″ |
 |
Steel Wheel Heads (slip on style) |
SWH3 | 450KG/990 LBS | 3.4KG/7 LBS | 1-12″ |
| Stainless | SWH3SS | ||||
 |
Nylon Wheel Heads (slip on style) |
NWH3 | 450KG/990 LBS | 2kg/5 LBS | 1-12″ |
 |
Ball Transfer Heads (slip on style) |
BTH3 | 450KG/990 LBS | 2.5KG/6 LBS | 1-12″ |
| Stainless | BTH3.1 | ||||
 |
Stainless Steel Heads (slip on style) |
SSH3 | 1585KG/3500 LBS | 1.0KG/2 LBS | 1-12″ |
 |
Steel Wheel Head | SWH3.1 | 1000KG/2205 LBS | 4.9KG/11 LBS | 1-24″ |
| Stainless | SWH3.1SS | ||||
 |
Nylon Wheel Head | NWH3.1 | 450KG/990 LBS | 3.3KG/7 LBS | 1-24″ |
 |
Roller Bar Heads | RBH3 | 1000KG/2205 LBS | 4.25KG/9 LBS | |
 |
Pipe Bar Heads | PBH3 | 1000KG/2205 LBS | 4.25KG/9 LBS | 1-12″ |
 |
Pipe Chain Vice Heads | PCV3 | 1000KG/2205 LBS | 6.5KG/14.3 LBS | 0.5-6″ |
 |
Large V Heads | TVH3L | 1585KG/3500 LBS | 7.6KG/17 LBS | 1-24″ |
