Customers often ask what is the difference between Pipe alignment red clamps and gold clamp?

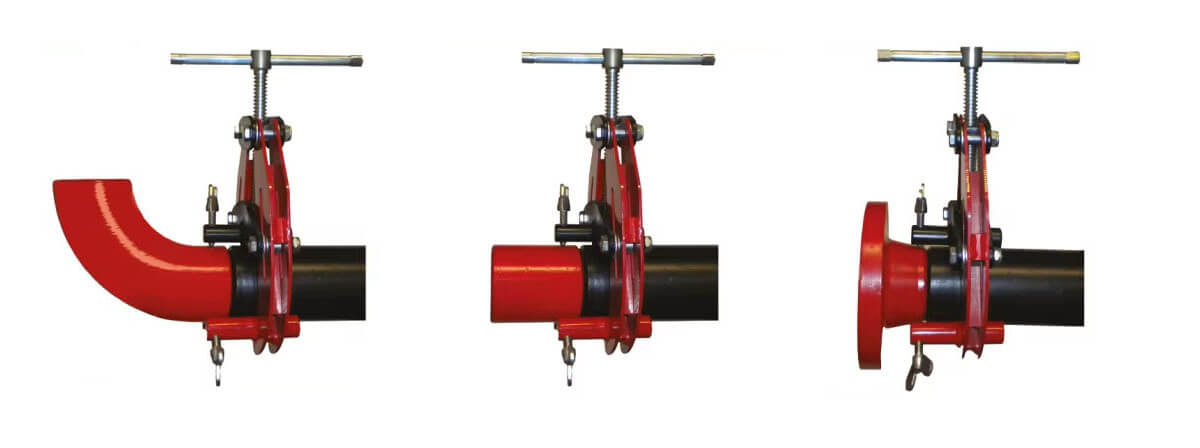

1. Pipe alignment red clamps
- Quick and easy to use
- Ulrta robust design,ideal for site work
- Stainless steel contact points as standard
- Sliding T-bar handle for ease of use and secure clamping
- Fine adjustment screws for quick fit-up
- Light weight for overhead work
| ITEM No. | SIZE | WEIGHT(KG/LBS) | |
| mm | inch | ||
| R2 | 25-74 | 1-2.5 | 1.5/3.5 |
| R6 | 50-170 | 2-6 | 4.0/9.0 |
| R12 | 127-325 | 5-12 | 6.7/15.0 |

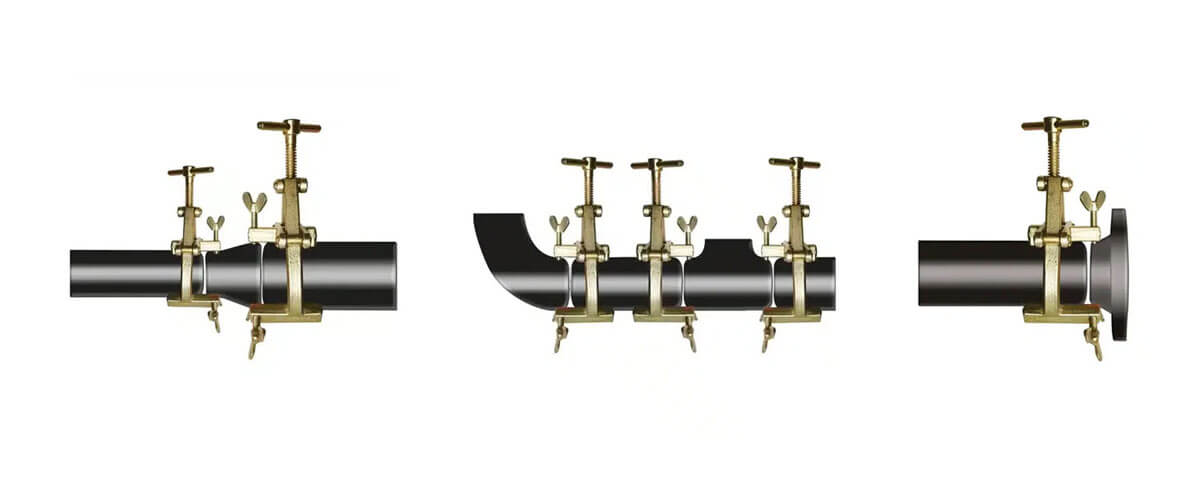

2.Pipe alignment gold clamp
- Quick and easy to use
- Drop forged steel construction for maximum strength
- Combines accuracy with safety
- Instant centering
- Five size range options
- Wing bolts with stainless steel bearings
| ITEM No. | SIZE | WEIGHT(KG/LBS) | |
| mm | inch | ||
| G3 | 20-90 | 1-3 | 1.4/3.0 |
| G5 | 50-150 | 2-5 | 3.0/7.0 |
| G7 | 90-195 | 3-7 | 3.3/7.5 |
| G9 | 125-245 | 5-9 | 7.0/15.5 |
| G14 | 225-370 | 9-14 | 9.0/20.0 |
What is the difference between a Pipe alignment gold clamp and a red clamp ?
1. The adjustable range is different, and the gold pipe alignment clamp can adjust more ranges.
2. The Pipe alignment gold clamp is of better quality than the red clamp.
3.The markets differ, with the pipe alignment gold clamps used in Europe and the pipe alignment red clamps used in the United States.
